Obstacle Avoidance Radar UCR-U50

Obstacle Avoidance Radar UCR-U50  is a compact 77GHz obstacle avoidance radar developed by Hangzhou Yi 'an Technology Co., LTD. The UCR-U50 radar can detect the reflection of the microwave by transmitting the double-beam fan-shaped microwave to the front, judge whether there are obstacles in front, and feedback the relative distance between the obstacles and the radar, which can guide the UAV to accurately avoid obstacles during the flight. The product adopts dual beam design, 0.2-80m measurement distance, compact size, high sensitivity, stable performance, light weight, easy integration, to meet the needs of unmanned flight platform (UAV /UAS), helicopters, small airships and other fields of application, product performance has been recognized by many partners

PRODUCT FEATURE

■ Long detection distance: up to 90 meters for target RCS 5㎡, and 40m for high voltage line

■ High detection accuracy: Compared with 24GHz radar, the range resolution of radar is improved up to three times, and better performance for obstacle recognition ability

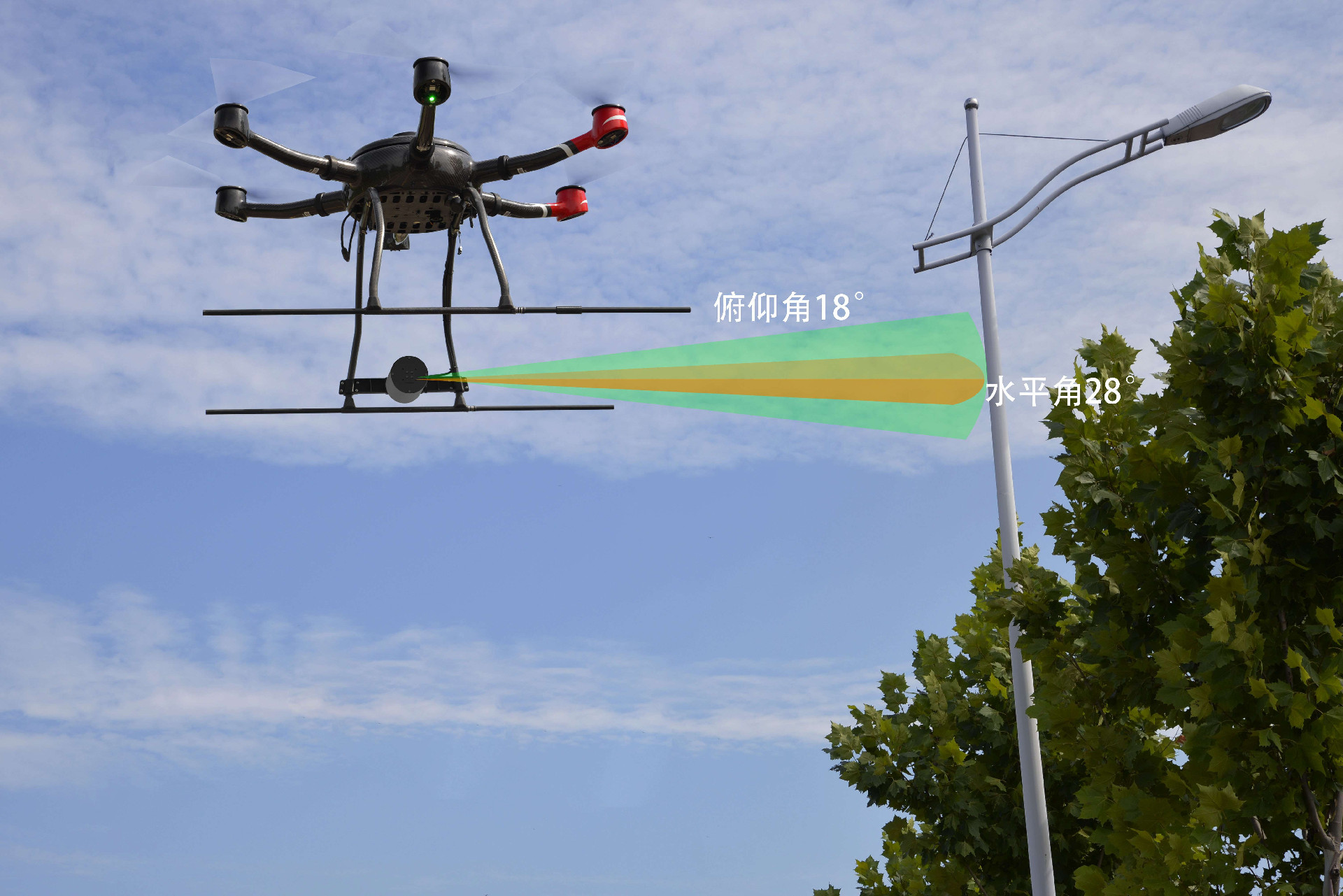

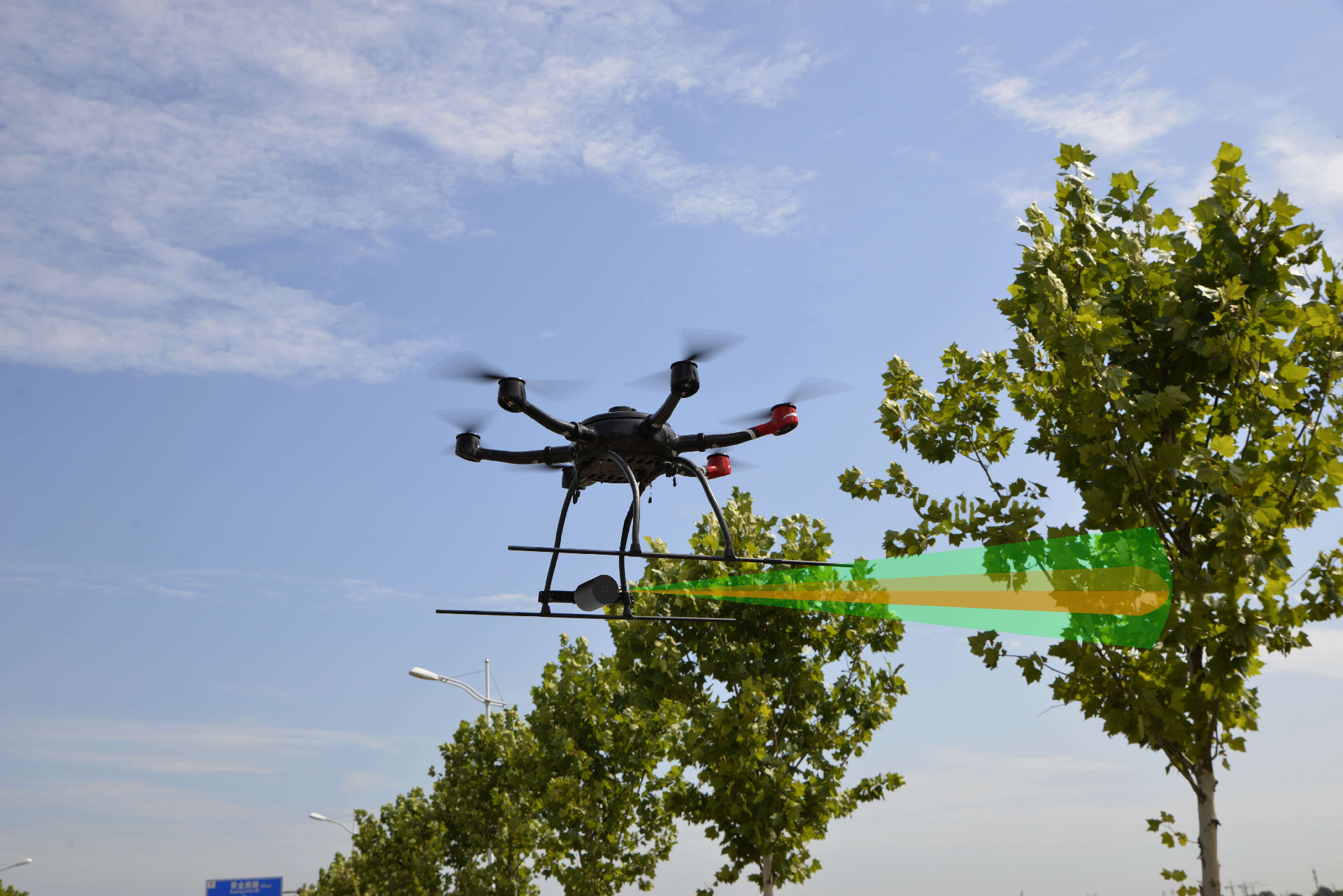

■ Dual beams simultaneously working mode: Wide FOV in short-range mode ; long detection distance in mid-range mode

■ The pitch angle of mid-range mode is 15.6°, wh reduce ground clutter interference when the UAV tilt attitude

■ Strong anti-interference ability: not affected by light, weather, environmental, noise, and unmanned aerial vehicle electromagnetic interference

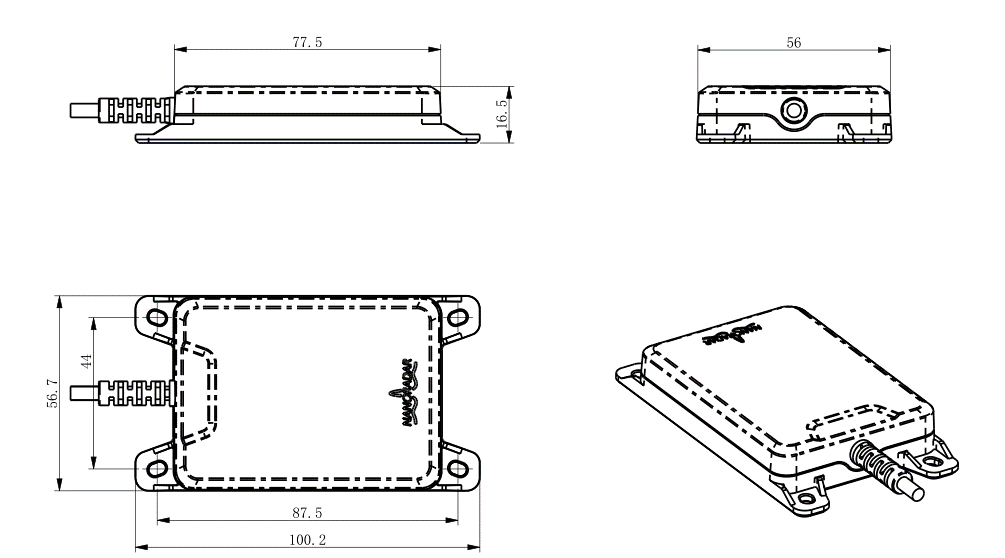

■ Compact size: 77GHz MMW obstacle avoidance radar is of small size, adaptive to various application
