Security Radar GSR-W450

Security Radar GSR-W450 is an intelligent wide-angle area security radar with a detection range of 450 meters and a detection Angle of 90°. The radar will detect and warn when the target enters the defense area, and judge the accurate position of the target through the distance, Angle and speed of the target. It can integrate the video for target recheck and judge whether it is the target that needs alarm. Using FMCW modulation mode, it has high detection accuracy. The unique digital beam synthesis (DBF) technology can greatly improve the anti-jamming ability of the radar system, with high precision Angle resolution and low speed detection ability. Through the back-end signal processing and pattern recognition algorithm, it can distinguish human and vehicle targets, and effectively filter out the interference of insects, birds and other animals.

PRODUCT FEATURE

■ Work in 24GHz-ISM-Band for the detection of moving targets

■ Able to detect the moving targets in extremely slow speed and filter the interference of plants and trees

■ Advanced DBF technology,able to detect azimuth/range information about object

■ Protection class: IP66

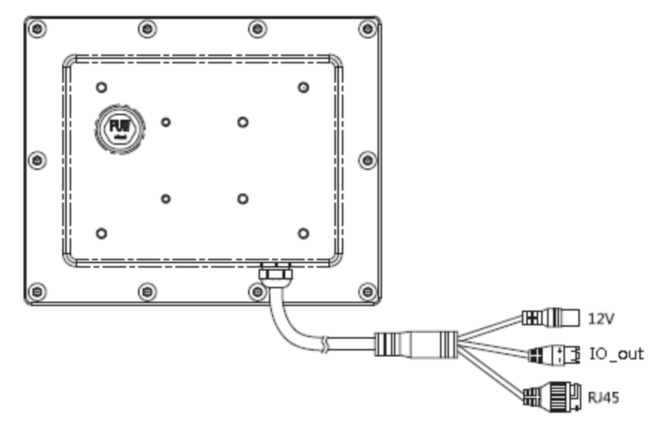

■ With Ethernet interface and PoE+

■ RoHS compliant
