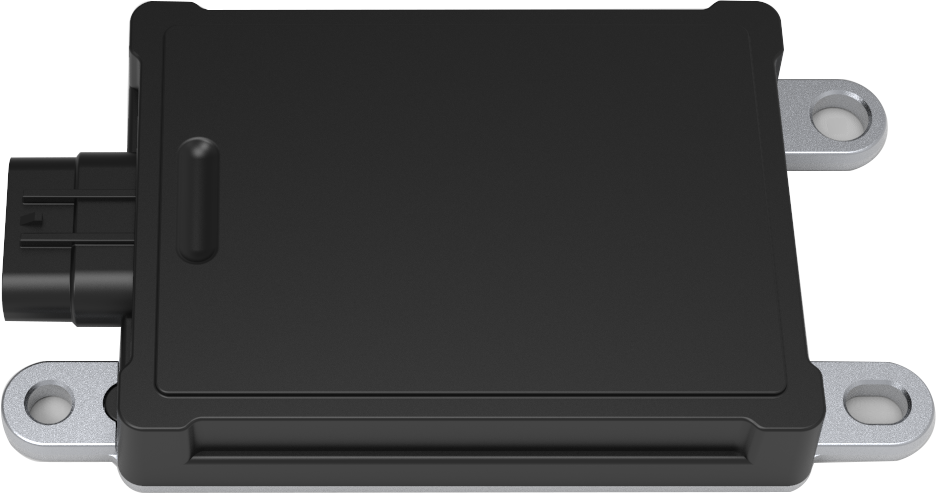

Traffic Flow Radar TMR-N200

Traffic Flow Radar  TMR-N200 is a compact 77GHz millimeter wave radar developed by Hangzhou Yi 'an Technology Co., LTD. TMR-N200 detects millimeter-wave reflection by transmitting millimeter-wave to the front, and feeds back the relative distance, speed and Angle information between obstacles and radar. It can detect and track the information of large and small vehicles and electric vehicles on the road in real time. The product adopts DBF digital beam synthesis, MIMO virtual aperture, near and far beam shaping and many other advanced technologies to achieve 1.2-300m measurement distance, support the detection of 128 targets, compact size, high sensitivity, stable performance, light weight, easy integration

PRODUCT FEATURE

■ It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-8lanes, longitudinal 300 meters

■ It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h

■ It supports multi-row virtual coil setting, coil size and position software can be adjusted, and real-time output of vehicle presence information

■ It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc

■ It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc

■ It supports customized data output

■ It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc
