Multi-lane Speed Measuring Radar TMR-M90

Multi-lane Speed Measuring Radar  TMR-M90 is a multi-lane speed measurement radar launched by Hangzhou Yi 'an Technology. It adopts 60GHz ISM band, frequency modulation continuous wave system and multi-antenna transceiver technology, which can realize multi-lane (1~4 lanes) multi-target (32 targets) speed measurement. The detection distance can reach 90 meters and support lane division. Support output speed, distance, Angle and target energy values. To differentiate the approach, destination, lane installation compensation; Speed measuring range and accuracy meet the national measurement standards.

PRODUCT FEATURE

■ 60GHz ISM frequency range

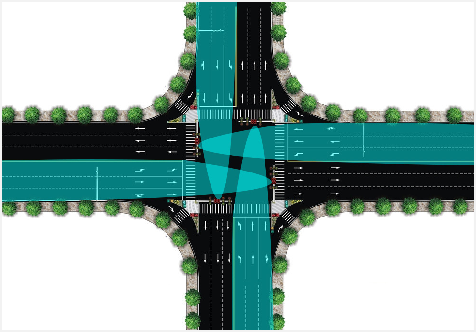

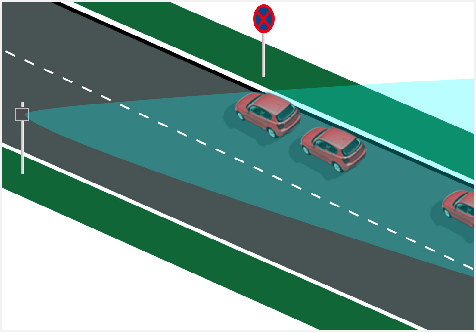

■ It supports two-way multi-lane multi-target trajectory tracking and detection, with 1-4 lanes horizontally and 90 meters vertically

■ It supports multi-target real-time speed monitoring, with a maximum of 32 targets and a speed measurement range of-200km/h ~ + 200km/h

■ It supports customized data output

■ It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc

■ It supports TTL serial port communication, customizes communication protocol, supports radar parameter configuration, and supports configuration of detection area
