Velocity Feedback Radar TSR-N180

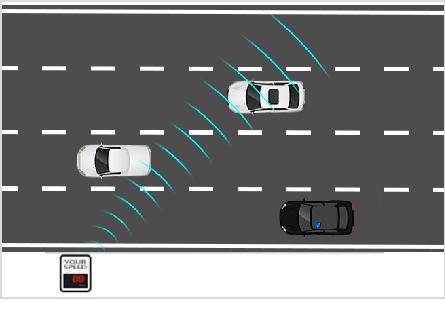

TSR-N180 is a 24GHz high performance traffic speed measurement radar, which can accurately measure the target speed and other information by using the frequency difference between the transmitted radio wave and the echo. The TSR-N180 adopts microstrip array antenna design, the detection range can be up to 180 meters, the speed measurement is accurate, can distinguish coming and going vehicles. Installed on the side of the road, can automatically measure the speed of 1 ~ 4 lanes of motor vehicles.

PRODUCT FEATURE

■ Advanced AI algorithm is adopted to effectively identify following cars and large cars and prevent missed beats and rebeats

■ Based on spectrum thinning technology, ranging and velocity measurement accuracy can be improved

■ The vehicle capture position within ±0.5m, the consistency is greater than 99%

■ Automatic identification of vehicle driving direction: coming, going

■ Integrated design, easy installation, easy integration

■ Strong environmental adaptability, radar performance is not affected by light, dust, rain, snow, haze and other harsh environment

■ It also has RS485, RS232, Wi-Fi communication functions, and convenient configuration parameters
